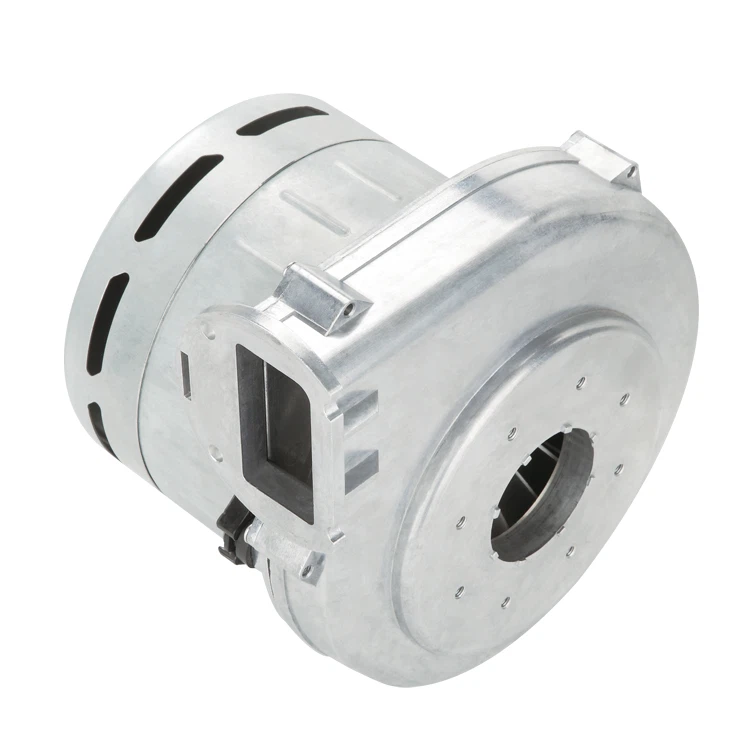

UL Certified BLDC Blower
Product Feature
High efficiency,energy saving,environmental protection, small , long life, adjustable ect.
100% calibration and factory inspection.
Technical Data
Model |
NXK73C1200Z005 |
|
Rated Voltage |
230 VAC |
120V |
Frequency |
50/60 Hz |
50/60 Hz |
Max. Input power |
1100 W |
800W |
Max.Air flow |
300 m3/h |
276 m3/h |
Max.Vacuum |
10 kPa |
10 kPa |
Speed Range at 50mm sealed orifice (max,min) |
15000(±10%) rpm/min |
15000(±10%) rpm/min |
Speed Control |
PWM/0-10VDC |
PWM/0-10VDC |
Protection Class |
IP00 |
IP00 |
Insulation level |
F |
F |
Net weight |
2.5 kg |
2.5 kg |
Dimensions/Wiring diagram
Application
Fume/Smoke extraction,Dental equipment,Laser machine,Sterilization equipment,Industrial vacuum cleaner,Laser machine,Dehumidifiers Etc.
Certificates
UL Certified BLDC Blower
When choosing a blower for your project, making the right selection from the market can be challenging. However, when purchasing a blower, there is one thing that must be ensured, which is its safety and performance, regardless of the environment you will use it in.
I'll give a brief introduction to UL, whose full name is "Underwriters Laboratories", which is a globally renowned safety certification agency. It conducts safety tests on products from various industries and issues certification certificates. This certification ensures that the products have undergone comprehensive testing and are extremely safe to use.
In conclusion, the brushless DC fans that have passed UL certification are indispensable for any user who uses industrial fans in their projects. They ensure that the products have undergone rigorous safety and reliability tests, which is of vital importance for industrial machinery.
