Technical Data
|
Model |
NXK154-1300-FZ01 |
|
Rated Voltage (VAC) |
220 |
|
Rated Frequency (Hz) |
50/60 |
|
Max.Input Power (W) |
1300±5% |
|
Max. Current(A) |
7.2 |
|
Max. Airflow(m3/h) |
1800±5% |
|
Max.Static Pressure (kPa) |
4.5±5% |
|
Insulation Class |
F |
|
Protection Class |
IP 20 |
|
Working Mode |
Continuous |
|
Min Start-Up Voltage(V) |
90 |
|
Speed Range (max, min) (r/min) |
650~5720(±5%) @ 0 kpa |
|
Speed control mode |
PWM/0~10V DC |
|
Working Environment |
Temperature -10~45℃ |
|
Humidity 15~85%RH |
|
|
Stock Environment |
Temperature -20~80℃ |
|
Humidity 15~85%RH |



Dimensions

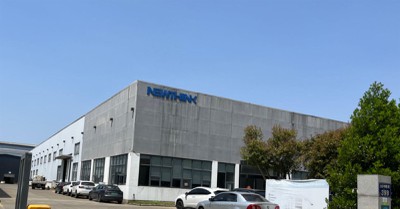

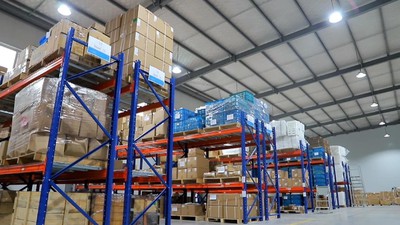

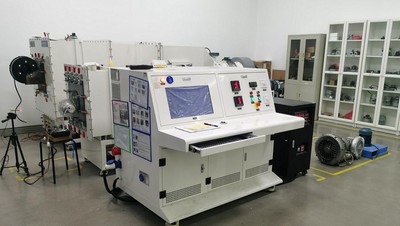

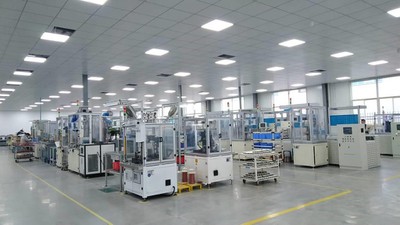

Factory Show
|
|
|
|
|
|
|
|
Tips: Centrifugal Exhaust Blower for Fume Extractor
Centrifugal exhaust fans really are the backbone of any solid smoke control system. What makes them work is the impeller - that spinning core pulls chemicals and smoke straight out of the air.
It's the centrifugal force that does the heavy lifting, giving these fans their steady, no-fuss performance. That's why they're such a natural fit for factories and industrial spaces where clean air isn't just nice to have - it's essential.
Bringing these units into your exhaust setup is one of those no-brainer moves. It's about making sure your people are breathing easier and your operations are covered. Cleaner air, fewer worries - that's the bottom line.
