Applications
Applications
Fume/Smoke extraction, Fuel cell, Medical equipment,
Air sampler, Air mettress Etc.
Technical Data
|
No. |
Model |
NXK36K351ZA21 |
NXK36L321ZA21 |
|
1 |
Rated Voltage (VDC) |
24 |
36 |
|
2 |
Voltage Range (VDC) |
20~28 |
32~40 |
|
3 |
Max.Input Power (W) |
350±5% |
320±5% |
|
4 |
Max. Airflow (m3/min) |
1.05±5% |
1.14±5% |
|
5 |
Max. Static Pressure (kPa) |
17±5% |
21±5% |
|
6 |
Max. Speed (rpm/min) |
29000±5% |
35000±5% |
|
7 |
Insulation Class |
A |
|
|
8 |
Protection Class |
IP 00 |
|
|
9 |
Working Mode |
Continuous |
|
|
11 |
Speef control Mode |
0～5V DC |
|
|
12 |
Working Environment |
Temperature -15～40℃ |
|
|
Humidity 15～85%RH Without Condensation |
|||
|
13 |
Stock Environment |
Temperature -25～45℃ |
|
|
Humidity 0～90%RH Without Condensation |
|||
Dimensions
Factory and Products show
|
|
|
|
|
|
|

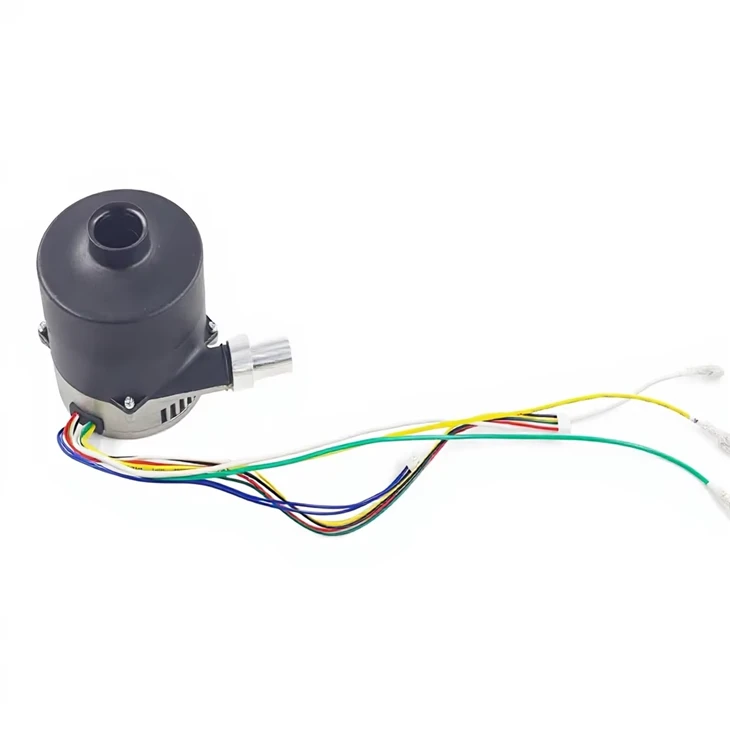

Small Size High Pressure Low Noise BLDC Blower
This model of 24V High Pressure Brushless BLDC Blower was developed with our customer together in 2020. It is used on air sampler. After long time testing and practical using, the performance and stability have been recognized by our customers.
For this blower ,the maximum air flow can achieve to 68 m3/h and static pressure is up to 20kPa. And its high-pressure capabilities facilitate consistent airflow, further enhancing its reliability for air sampling tasks.
Compare to universal blower, life time of 3.6'' Preripheral By Pass Brushless DC Fan is much longer. It greatly reduces maintenance costs.
Besides, the most obvious feature is that the sound is good. No high frequency harsh. It sounds comfortable. The customer is very satisfied for it.
If you also have interesting for 24V high pressure bldc blower, welcome to consult.
Certainly, we also have ability to provide customization service.
